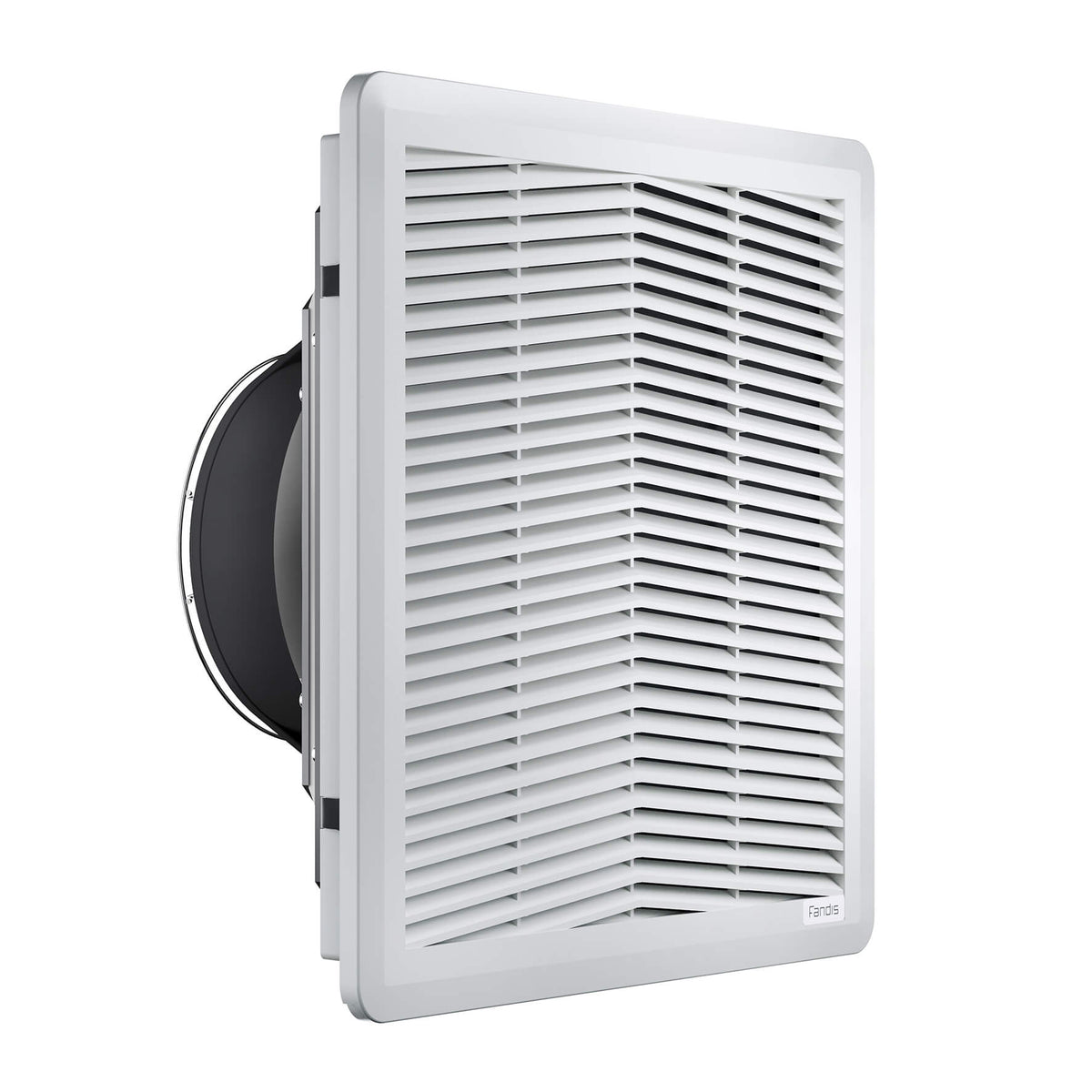

Fandis FF20PA115UFR – FAN FILTER 115Va.c. RAL 7035 REV. FLOW

Name: Fandis FF20PA115UFR – FAN FILTER 115Va.c. RAL 7035 REV. FLOW
Brand: Fandis
SKU: FF20PA115UFR
Availability: InStock

Price on request

Esaurito

Spese di spedizione calcolate al check-out.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF20PA115UFR
Approvals	CE; cURus; cULus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	103-126 V a.c.
Rated Current	0.54/0.51 A
Rated Power	45/45 W
Rated Voltage	115 V a.c.
IP Protection Degree	IP54
Operating Temperature	-30÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Reverse
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	58/61 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	40000 h at 40 °C
RAL Number	7035
Spare Parts Filter Media	M20FPF-EU3
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	295/320 m³/h
Max Airflow	340/375 m³/h
Max Static Pressure	140/135 Pa
UL Environmental Type Rating	Type 1, 12
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
