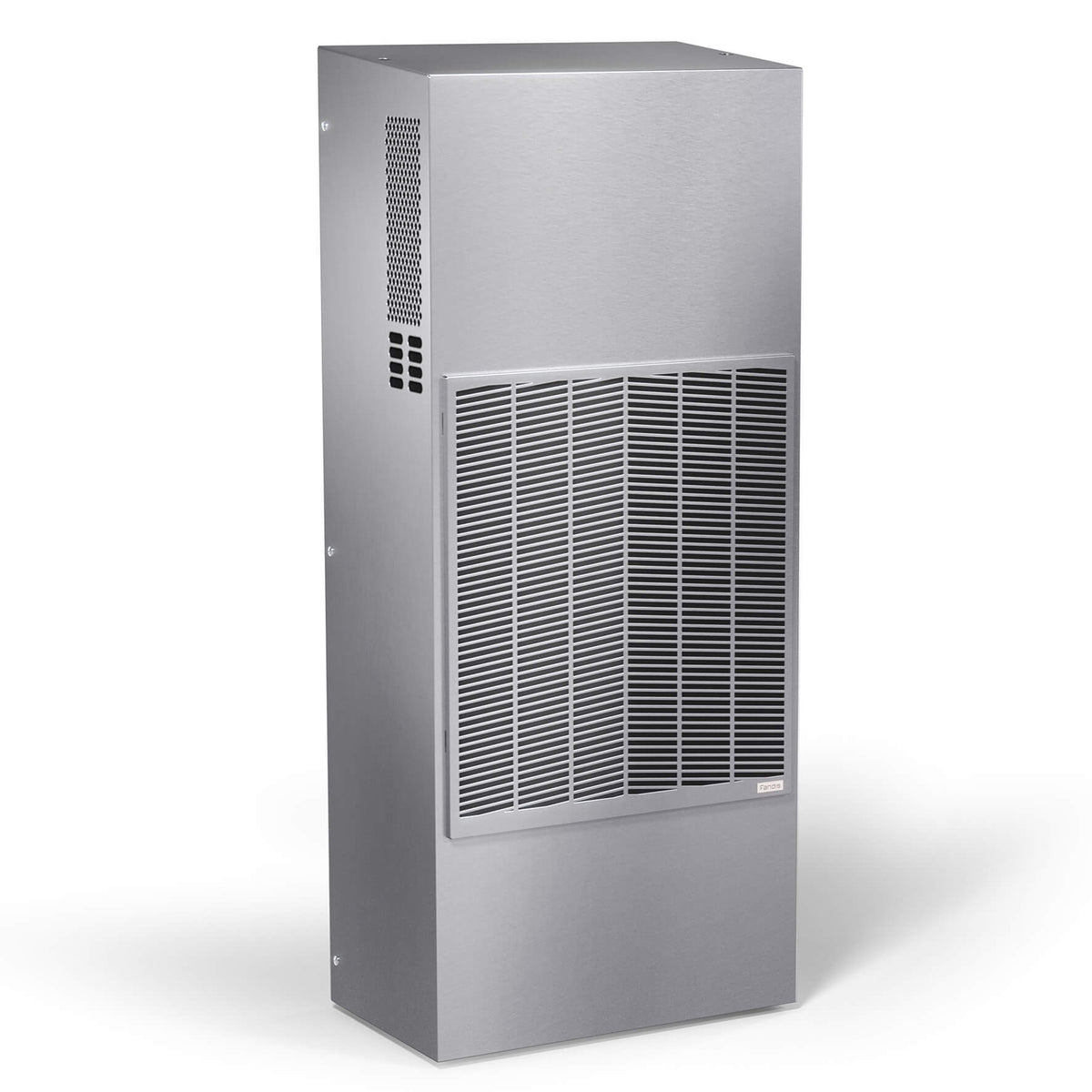

Fandis CCU10A231WNI6X – Indoor Cooling Unit 1000W 230V~1 INOX316

Name: Fandis CCU10A231WNI6X – Indoor Cooling Unit 1000W 230V~1 INOX316
Brand: Fandis
SKU: CCU10A231WNI6X
Availability: InStock

Price on request

Esaurito

Spese di spedizione calcolate al check-out.

Request a price

The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.

Technical specifications

Manufacturer part number	CCU10A231WNI6X
Approvals	CE; UKCA
Frequency	50/60 Hz
Fuse T	8 A
Max Current	20 A
Rated Current	4.2/4.6 A
Rated Power L35L35	485/565 W
Rated Power L35L50	535/645 W
Rated Voltage	230 V a.c.
Operating Temperature	20÷50 °C
Protection Degree Enclosure Side	IP54
Casing Material	Stainless Steel AISI 316
CO2e	0.35 t
Electrical Connection	Connector
GWP	631
Maximum Allowable Pressure	HP 2.4/LP 0.6 MPa
Refrigerant Charge	550
Refrigerant Number	R513A
Cooling Capacity L35L35	1015/1115 W
Cooling Capacity L35L50	815/855 W
