SALTEK
SKU:A01910
SLP-440 V/3
SLP-440 V/3
Price on request
Versand wird beim Checkout berechnet

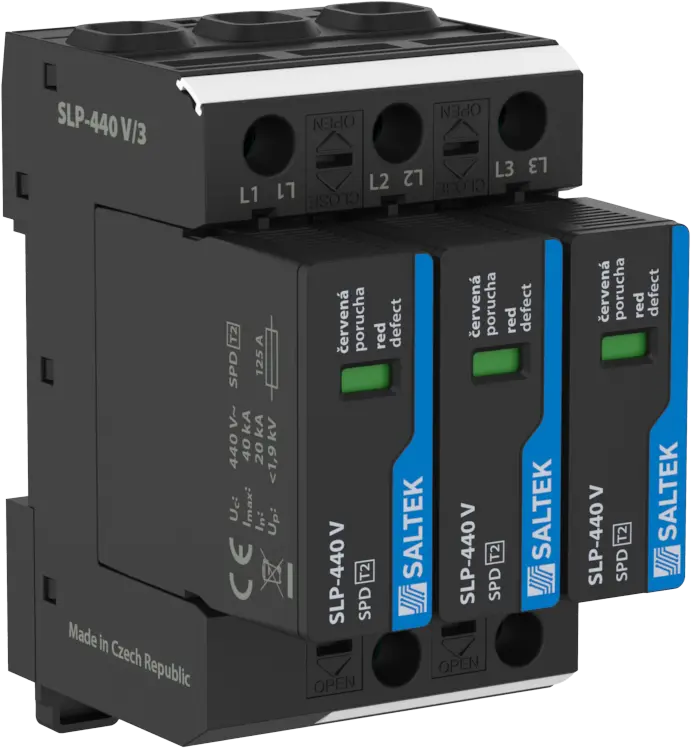

SALTEK SLP-440 V/3 — Pluggable module, visual fault signalling, module locking, three-pole varistor surge arrester, installation to LV installations, especially to sub-distribution boards in 400/690 V AC TN-C systems or TN-S without neutral conductor, eventually in IT system 400 V AC, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01910 |
|---|---|
| EAN | 8595090519102 |
| Nominal voltage | 400 V |
| Maximum operating voltage | 440 V AC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.9 kV |
| ETIM class | EC000941 |
| Net weight | 345 g |
| Packing dimensions | 123 × 83 × 65 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
