SALTEK
SKU:A05139
DMHF-015/1-RS
DMHF-015/1-RS

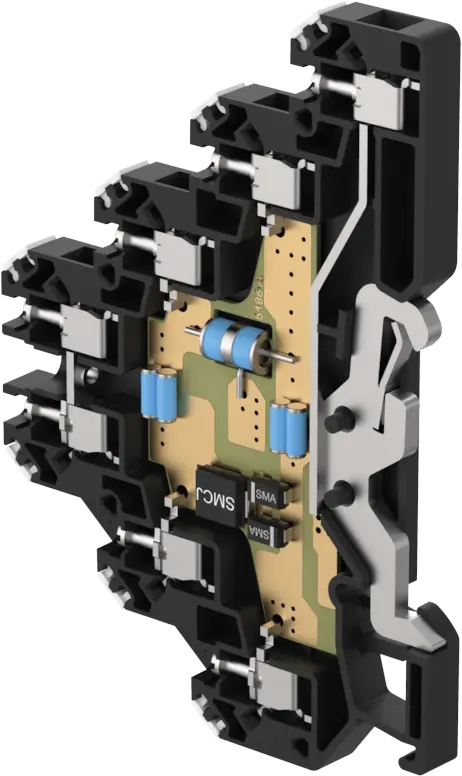

SALTEK DMHF-015/1-RS — Coupling impedance (resistance), screw terminals, coarse and fine surge protection for 2-core high-speed signalling lines, installation close to protected equipment, for protection of communication interfaces, mainly the RS-485 and RS-232 lines, of I&C, electronic security and fire detection systems, etc. against impact of surge voltage., coarse and fine surge protection in differential mode (core – core) and coarse surge protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A05139 |
|---|---|
| EAN | 8595090551393 |
| Nominal voltage | 15 V |
| Maximum operating voltage | 15 V AC |
| Maximum operating voltage (DC) | 22 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 70 MHz |
| ETIM class | EC000943 |
| Net weight | 35 g |
| Packing dimensions | 102 × 71 × 27 mm |
