SALTEK
SKU:A06063
DMG-048/1-RB
DMG-048/1-RB
Price on request
Versand wird beim Checkout berechnet

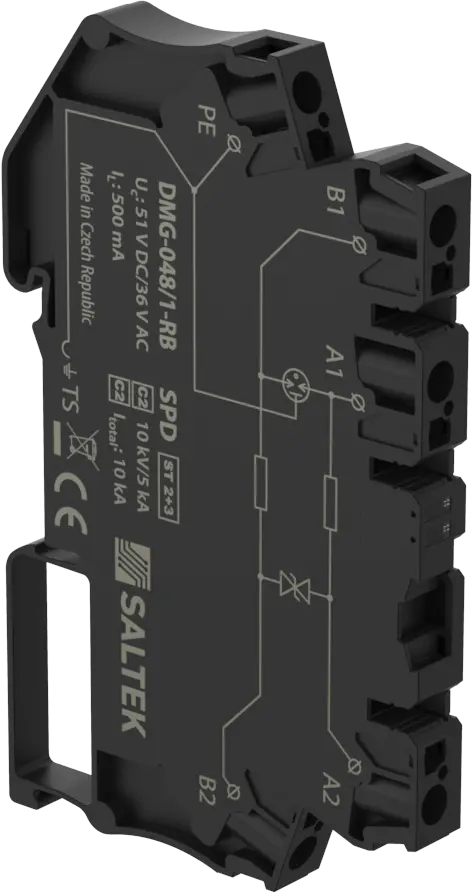

SALTEK DMG-048/1-RB — Coupling impedance (resistance), screwless terminals, coarse and fine surge protection for 2-core signalling networks, installation close to protected equipment, for protection of communication interfaces and measuring lines of I&C, electronic security and fire detection systems, etc. against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).
Technical specifications
| SALTEK order number | A06063 |
|---|---|
| EAN | 8595090560630 |
| Nominal voltage | 48 V |
| Maximum operating voltage | 36 V AC |
| Maximum operating voltage (DC) | 51 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 5 MHz |
| ETIM class | EC000943 |
| Net weight | 35 g |
| Packing dimensions | 124 × 82 × 25 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
