DM-048/1-L2-DJ

Name: DM-048/1-L2-DJ
Brand: SALTEK
SKU: A06733
Availability: InStock

Price on request

Ausverkauft

Versand wird beim Checkout berechnet

Request a price

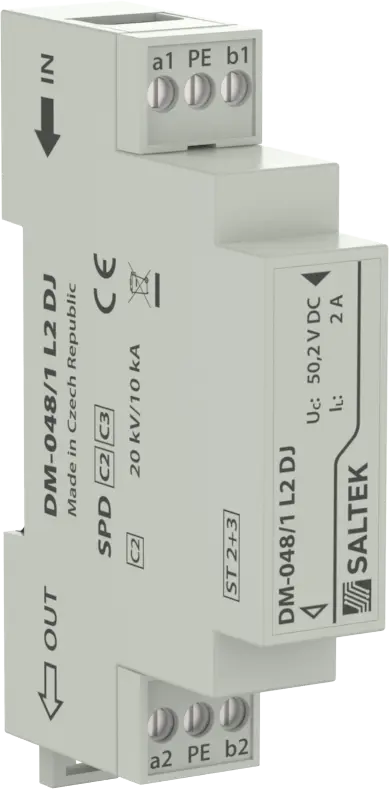

SALTEK DM-048/1-L2-DJ — Coupling impedance (L – inductance), coarse and fine surge protection for 2-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).

Technical specifications

SALTEK order number	A06733
EAN	8595090567332
Nominal voltage	48 V
Maximum operating voltage	35.6 V AC
Maximum operating voltage (DC)	50.2 V DC
Nominal load current	2 A
Frequency / bandwidth value	0.15 MHz
ETIM class	EC000943
Net weight	70 g
Packing dimensions	124 × 82 × 25 mm
