Relpol
SKU:RSM957-0111-85-S003

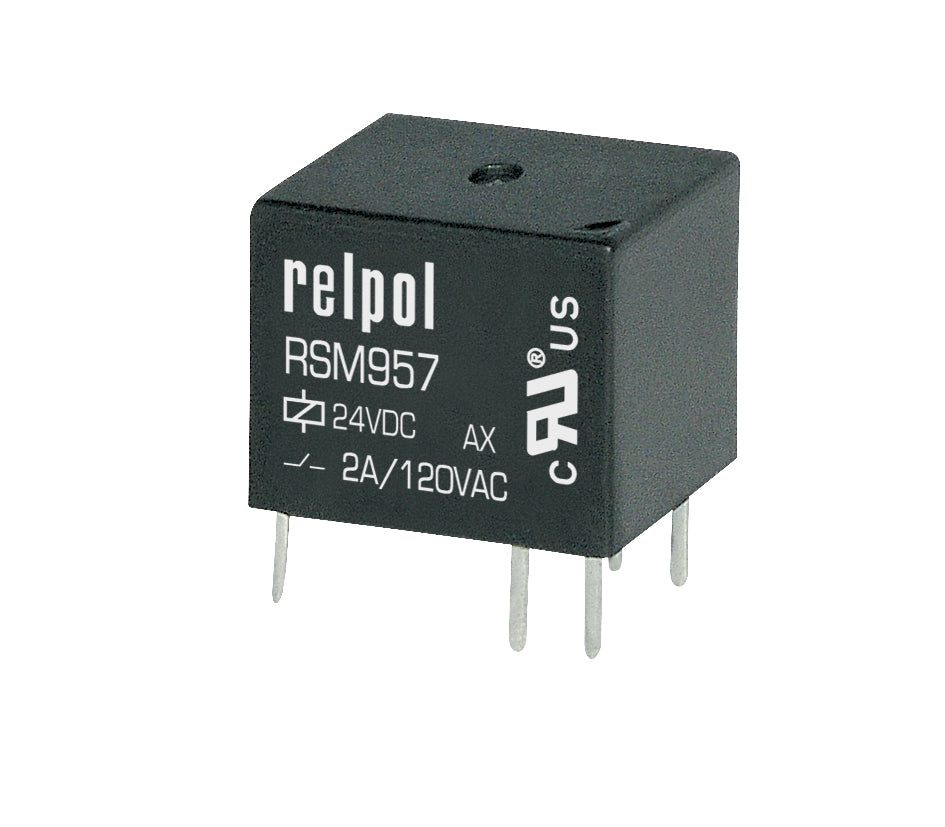

Relpol RSM957-0111-85-S003 – Industrial Relays
Relpol RSM957-0111-85-S003 – Industrial Relays
Price on request
Versand wird beim Checkout berechnet
Relpol RSM957-0111-85-S003. Industrial Relays.
Technical specifications
| Type of coil supply | DC sensitive coil |
|---|---|
| Coil voltage | 3 V |
| Contact material | Ag/Au flash gold plated |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 2 A / 120 V AC |
| Rated load DC1 | 2 A / 24 V DC |
| Rated switching voltage | 120 V AC |
| Connection | PCB mounting |
| Depth (mm) | 12,6 |
| Width (mm) | 7,8 |
| Height (mm) | 10 |
| Weight (kg) | 0,0022 |
| ETIM class | EC001437 |
| Version | niestandardowe |
| Relay type | RSM957 |
| Enclosure protection | IP 67 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Relpol
