Relpol
SKU:RSM822-6112-85-S006

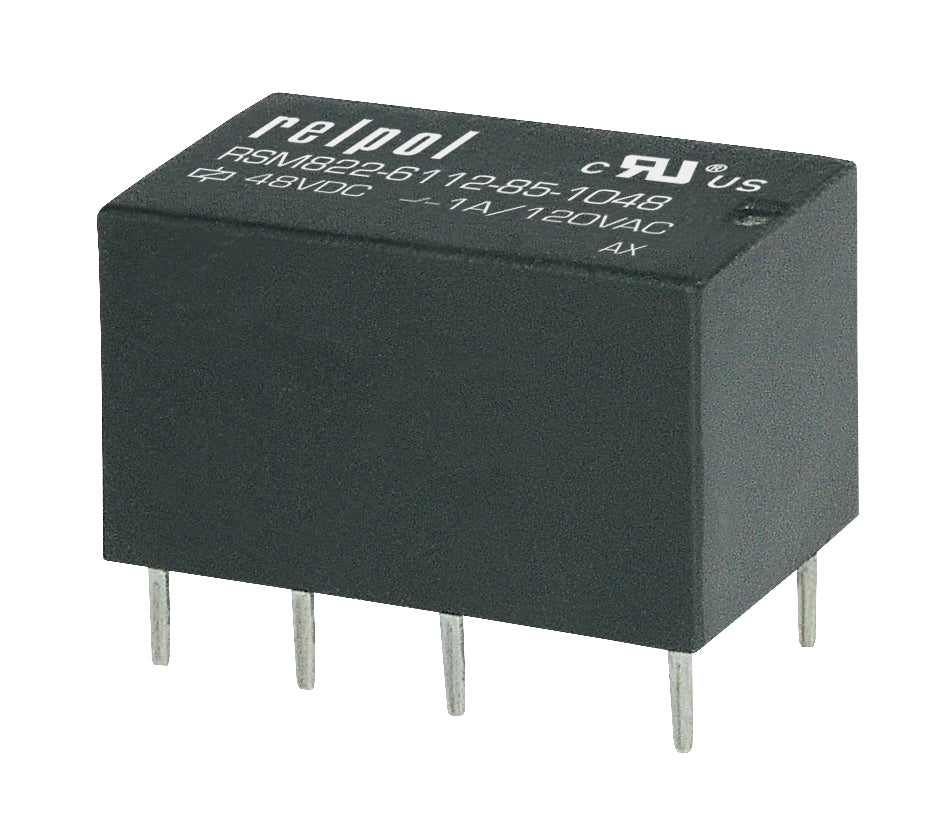

Relpol RSM822-6112-85-S006 – Industrial Relays
Relpol RSM822-6112-85-S006 – Industrial Relays
Price on request
Versand wird beim Checkout berechnet
Relpol RSM822-6112-85-S006. Industrial Relays.
Technical specifications
| Type of coil supply | DC sensitive coil |
|---|---|
| Coil voltage | 6 V |
| Contact material | AgPd/Au flash gold plated |
| Number and type of contacts | 2 CO |
| Rated load AC1 | 1 A / 120 V AC |
| Rated load DC1 | 2 A / 24 V DC |
| Rated switching voltage | 120 V AC |
| Connection | PCB mounting |
| Depth (mm) | 21 |
| Width (mm) | 10,1 |
| Height (mm) | 12,1 |
| Weight (kg) | 0,0048 |
| ETIM class | EC001437 |
| Version | niestandardowe |
| Relay type | RSM822 |
| Enclosure protection | IP 67 |
