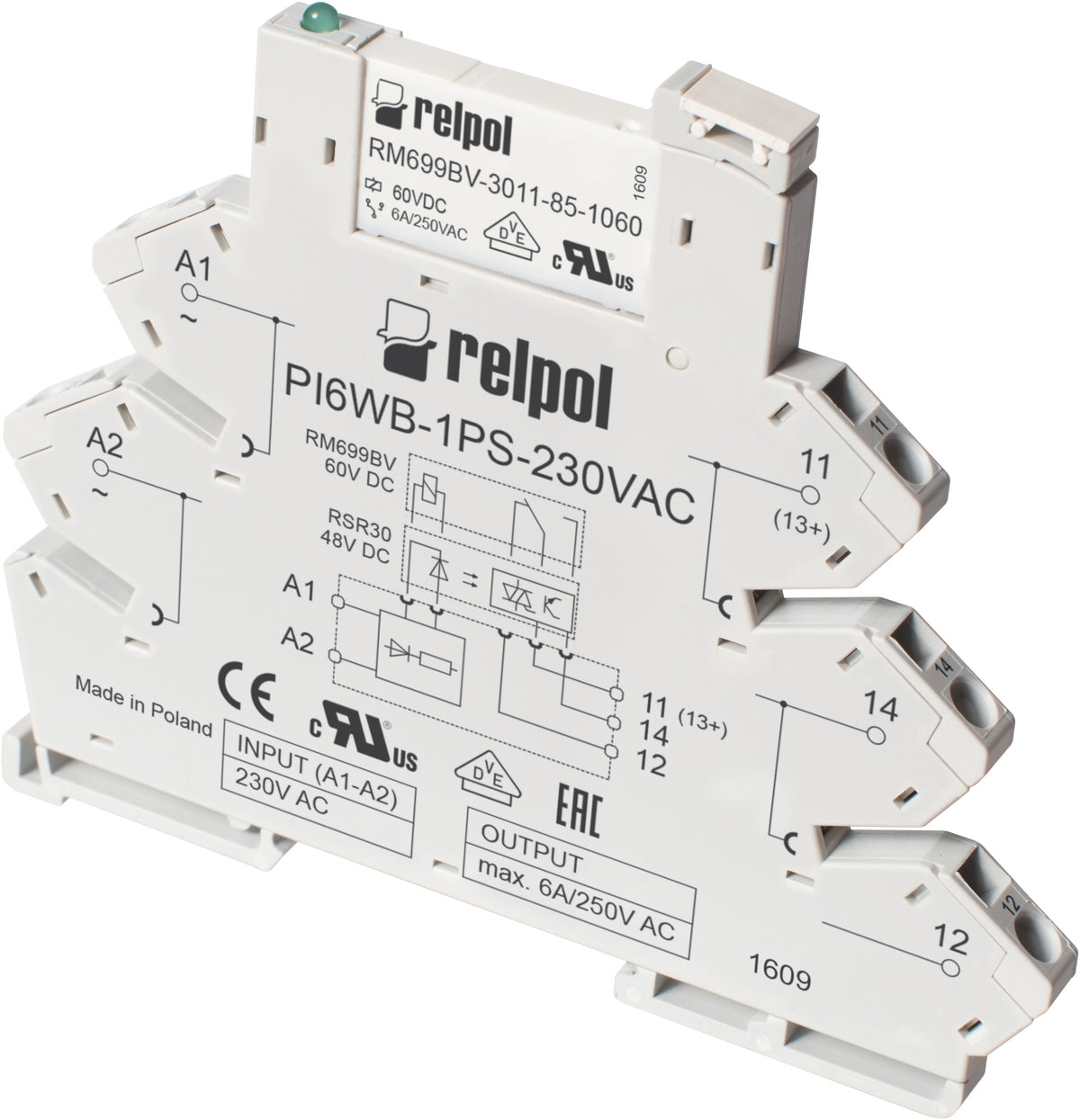

Relpol PIR6WB-1PS-230VAC/DC-R01 – Interface Relays
Relpol PIR6WB-1PS-230VAC/DC-R01 – Interface Relays
Price on request
Versand wird beim Checkout berechnet
Interface relays PIR6WB-1PS-230VAC/DC-R01 (SZ), 1 CO. Contact material: AgSnO2/Au hard gold plating. Voltage coil 230 V AC/DC. Rated load AC1 0,05 A / 30 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.
Technical specifications
| Type of coil supply | AC/DC |
|---|---|
| Coil voltage | 230 V |
| Contact material | AgSnO2/Au hard gold plating |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 0,05 A / 30 V AC |
| Rated load DC1 | 0,05 A / 36 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 98,3 |
| Width mm | 6,2 |
| Height mm | 84,6 |
| ETIM class | EC001437 |
| Relay type | PIR6WB-1PS |
| Ip cover | IP 20 |
