SKU:PIR6W-1P-230VAC

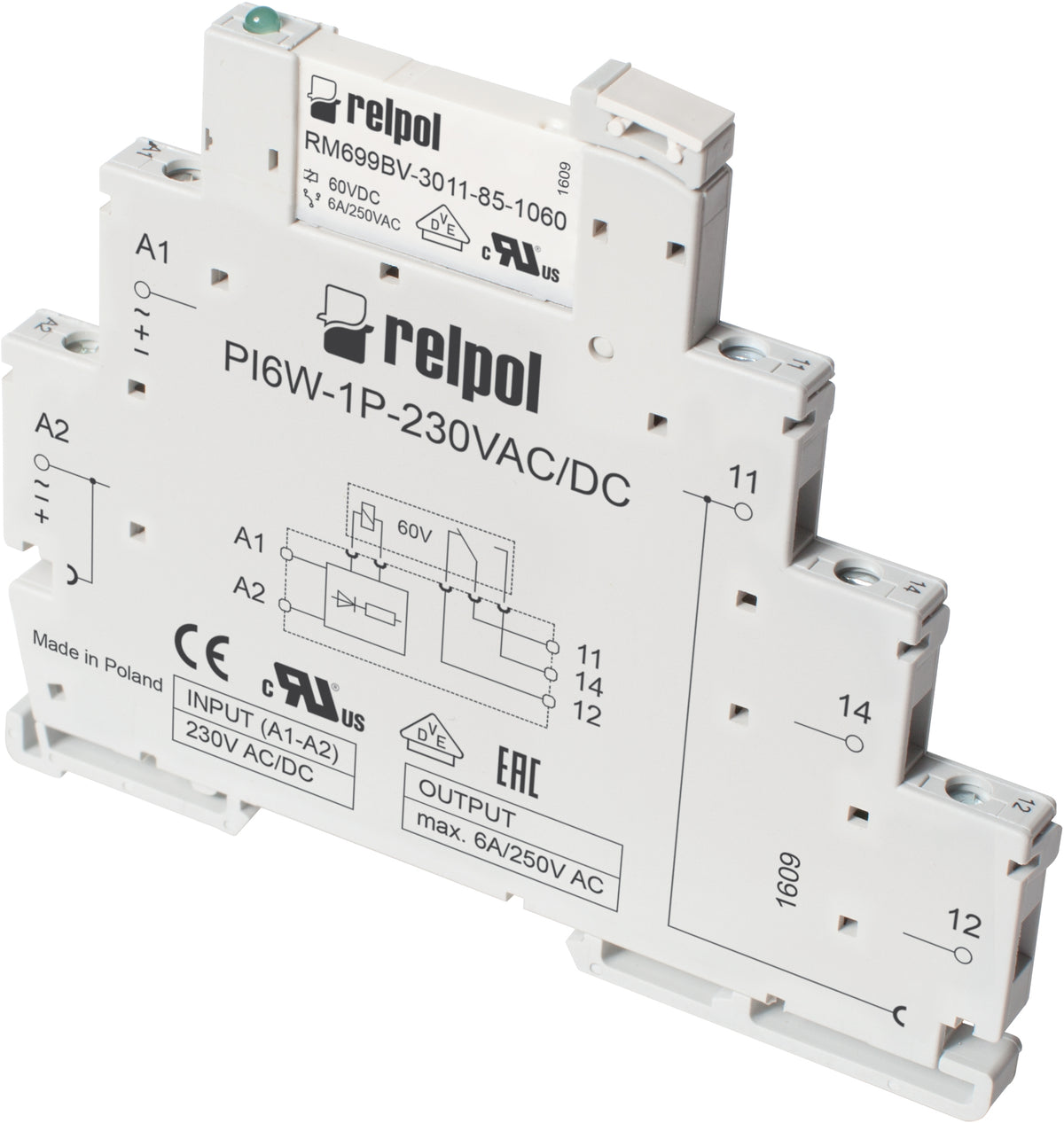

Relpol PIR6W-1P-230VAC – Interface Relays
Relpol PIR6W-1P-230VAC – Interface Relays
Price on request
Versand wird beim Checkout berechnet
Interface relays PIR6W-1P-230VAC (SZARE), 1 CO. Contact material: AgSnO2. Voltage coil 230 V AC. Rated load AC1 6 A / 250 V AC. Mounting: mounting on 35 mm rail. Cover protection category IP 20.
Technical specifications
| Type of coil supply | AC |
|---|---|
| Coil voltage | 230 V |
| Contact material | AgSnO2 |
| Number and type of contacts | 1 CO |
| Rated load AC1 | 6 A / 250 V AC |
| Rated load DC1 | 6 A / 24 V DC |
| Mounting | mounting on 35 mm rail |
| Depth | 98,5 |
| Width mm | 6,2 |
| Height mm | 85,5 |
| ETIM class | EC001437 |
| Relay type | PIR6W-1P |
| Ip cover | IP 20 |
