Pizzato
SKU:MK V11D45-R16
MK V11D45-R16
MK V11D45-R16
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

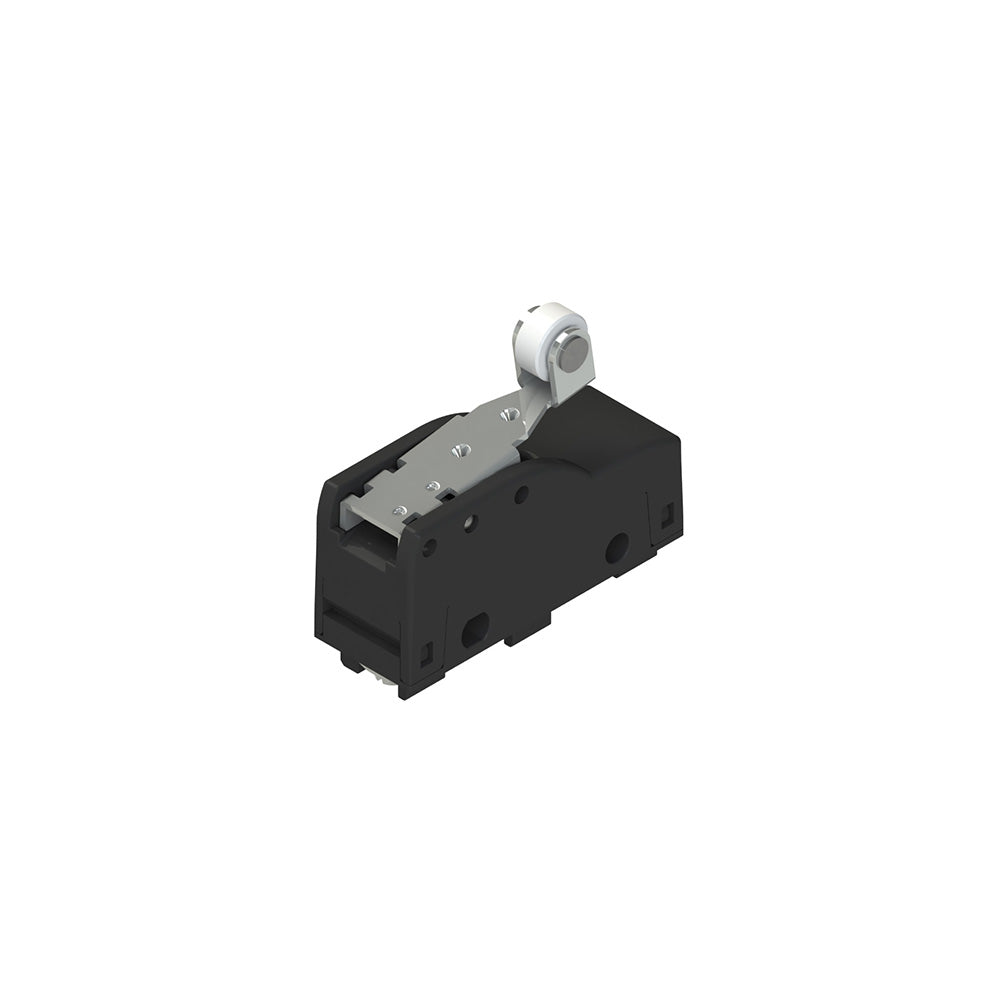

Microswitch with short roller lever, Ambient temperature: From -25 °C to +85 °C, Housing: Technopolymer housing, Terminal type: Screws with self-lifting plate, Contact block: 1NO+1NC changeover, Maximum protection degree: IP00 without terminal cover; IP20 with terminal cover VF C01, VF C03; IP40 with terminal cover VF MKCx1x, VF C02, Actuation type: Direct action, Actuator: With roller lever (l= 25mm) and metal roller ? 9.5x4 mm.
Technical specifications
| Manufacturer part number | MK V11D45-R16 |
|---|---|
| EAN | 8018851147586 |
| Minimum order quantity | 1 |
| Weight | 34 g |
| Customs tariff number | 85369095 |
| Product range | MK |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
