Pizzato
SKU:FR 2096-XM1
FR 2096-XM1
FR 2096-XM1
Availability: Ships in 2–3 weeks
Verfügbarkeit für Abholungen konnte nicht geladen werden

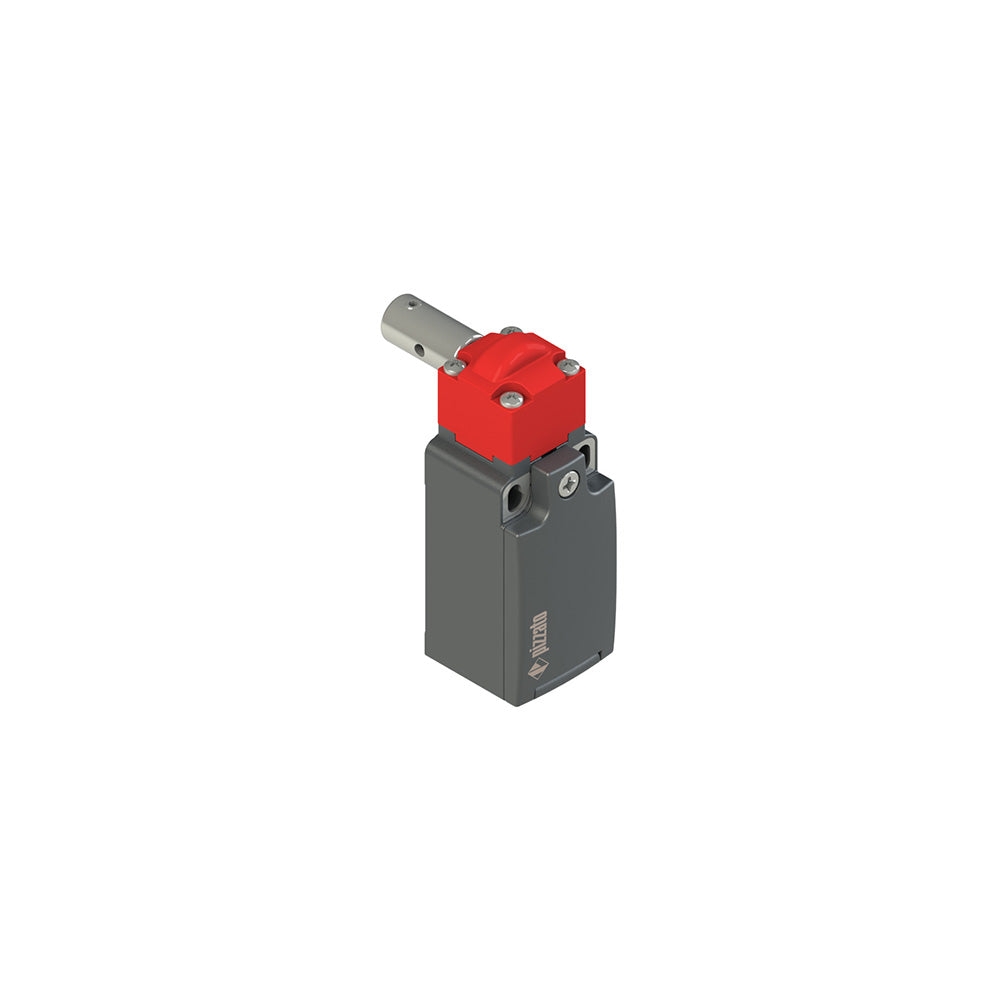

Safety switch for hinged doors, Housing: Technopolymer housing, one threaded M16x1,5 conduit entry and external parts in stainless steel (FR series), Contact block: 1NO+2NC slow action (B20), Head: For hinged doors with external parts in stainless steel, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 2096-XM1 |
|---|---|
| EAN | 8018851166259 |
| Minimum order quantity | 1 |
| Weight | 105 g |
| Customs tariff number | 85369095 |
| Product range | Hinge operation - normal duty |
| ETIM class | EC002591 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
