Fandis
SKU:HVMS350THP-115

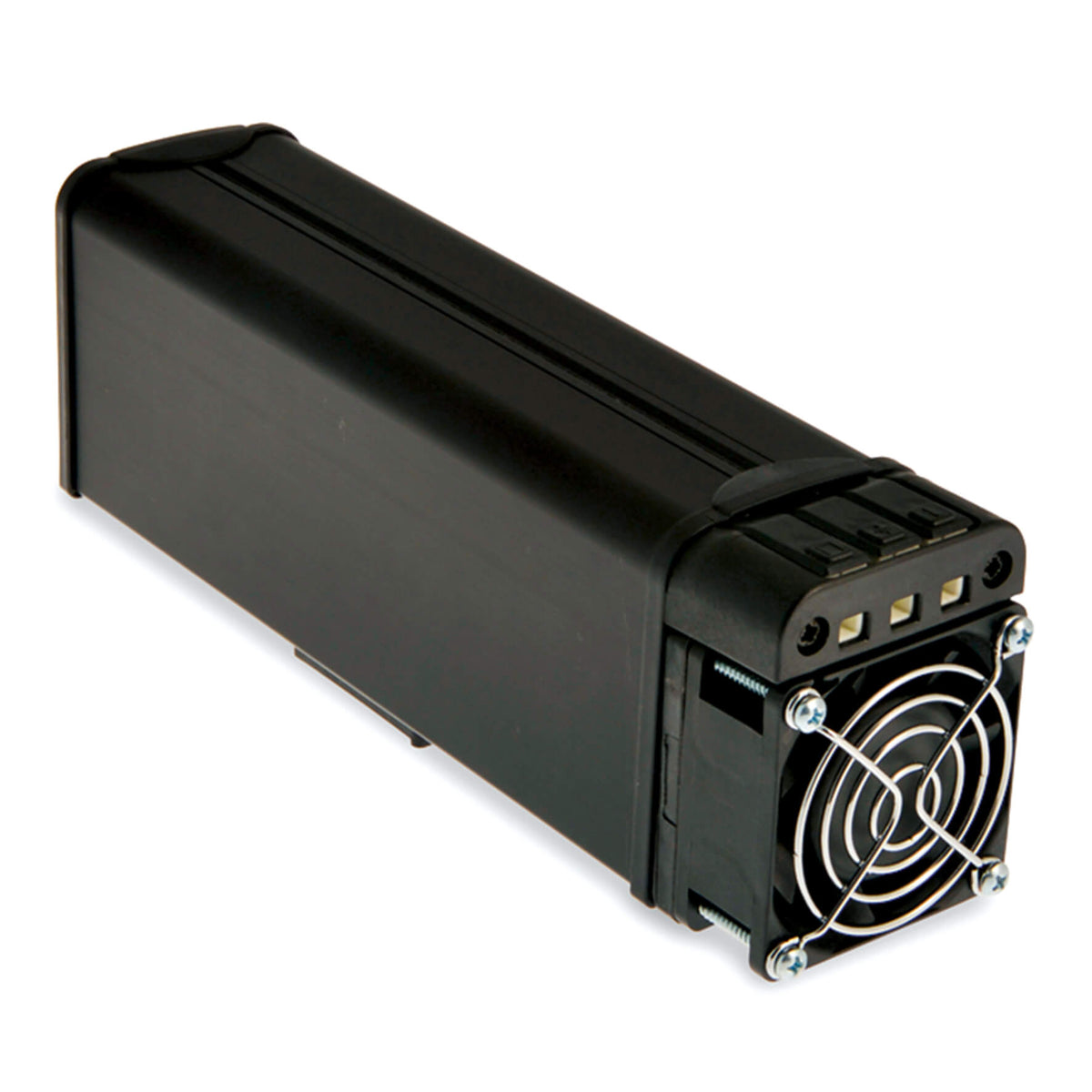

Fandis HVMS350THP-115 – HEATER 350W 115Va.c.
Fandis HVMS350THP-115 – HEATER 350W 115Va.c.
Price on request
Versand wird beim Checkout berechnet
Fandis PTC heaters are used for warming up the air inside enclosure, protecting electrical and electronic components from condensation and corrosion. These H series PTC heaters with built-in fan ensure quick distribution of heat and are available in two versions: in metal or plastic, with low surface thermal conductivity to keep safe maintenance operations.
Technical specifications
| Manufacturer part number | HVMS350THP-115 |
|---|---|
| Approvals | CE; cURus; UKCA |
| Appliance Class | I |
| Frequency | 50/60 Hz |
| Max Current | 1.9 A |
| Operating Voltage | 75-125 V a.c. |
| Rated Voltage | 115 V a.c. |
| IP Protection Degree | IP20 |
| Operating Temperature | -10÷50 °C |
| Storage Temperature | -40÷70 °C |
| Casing Material | Black Anodised Aluminium |
| Electrical Connection | Terminal Block |
| Fixing System | DIN rail |
| Wires Section | 1-2.5 mm² 20-16 AWG |
| Heating Power | 350 W |
| UL Environmental Type Rating | Open Type |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 50 °C |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
